78024 - NOR - 25-Ton Shop Press with Air/Hydraulic Pump $2,308.00

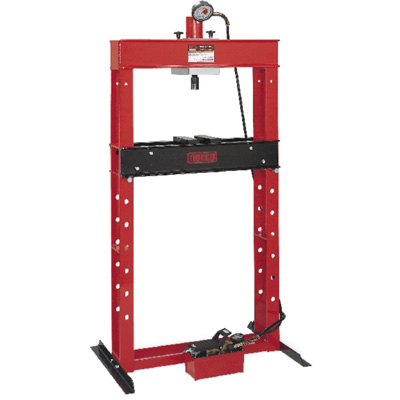

78024 - NOR - 25-Ton Shop Press with Air/Hydraulic Pump

INTENDED USE:

Straightening, bending and pressing.  Removing and installing gears, bearings and bushings.


FEATURES:

  • Welded frame, fully assembled, tested, and ready to put to work.
  • Air/hydraulic foot pump provides hands free operation.
  • Pair of bed plates included.
  • Self-retracting ram can slide for horizontal movement on head channel.
  • Zero distortion, heavy duty structural steel frame.
  • Liquid filled gauge measures ram force and internal working pressure.




DIMENSIONS:

Ram Travel8"
Min. Throat Height6.75"
Max. Throat Height40"
Throat Width30.5"
Bed Height Adj.8 x 4.75"
Between Uprights6"
Between Bed Rails7"
Base Width40"
Base Depth28"
Overall Height76.75"
Shipping Weight430 lbs.

*PLEASE GIVE US CALL SO WE MAY PROVIDE YOU AN ACURATE SHIPPING QUOTE. AUTOMATED SYSTEM CANNOT PROVIDE ACURATE PRICING FOR SHIPMENTS WEIGHING OVER 100 LBS*
