Rotary 4 POST LIFT 271 WB 30000 lbs. SM30L $18,277.00

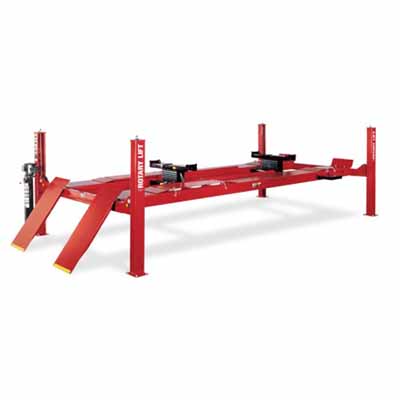

Rotary 4 POST LIFT 271 WB 30000 lbs. SM30L
Heavy Duty Surface Mounted Runway-Type Drive-On Lift, With 24" Wide Runway
That Can Be Set For Variable Tread Width Setting. Runways and Ramps Have An Oil Resistant,
Non-Skid Coating. Includes Air Operated Single Point Release Locking Latches.
Internal Air Line with Quick Disconnects.
Electric-Hydraulic Operation.

A.                 Rotary Lift SM301

1.                  Capacity: 30,000 lbs.

2.                  Wheelbase:  271”

3.                  Overall Length:  28’ 8-1/8”

4.                  Overall Width:  12’ 4-13/16”

5.                  Inside Columns:  132”

6.                  Between Columns:  285”

7.                  Height of Columns:  7’ 3/4”

8.                  Rise (from floor to top of runway):  68”

9.                  Width of Runway:  24” (each)

10.             Height of Runway:  8-3/8”

11.             Width Between Runways (min.):  41”

12.             Width Between Runways (max.):  48”
